How to Install and Configure LAPS? Security

Local Administrator Password Solution (LAPS) is a Microsoft product that manages the local account passwords of domain joined computers. Passwords are stored in Active Directory (AD) and protected by ACL.

How to implement LAPS

Step 1: Add Active Directory Domain Services (ADDS) Role

Step 2: Add one client computer to the domain

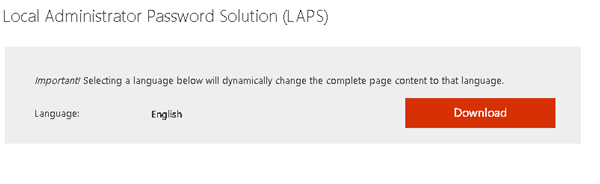

Step 3: Download the LAPS installation link from the link https://www.microsoft.com/en-us/download/details.aspx?id=46899











LAPS Installation

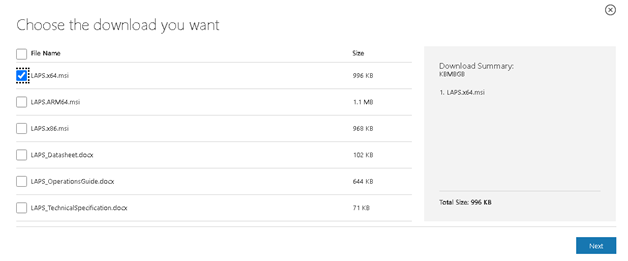

Step 4: Install the LAPS.x64.msi file

LAPS Setup

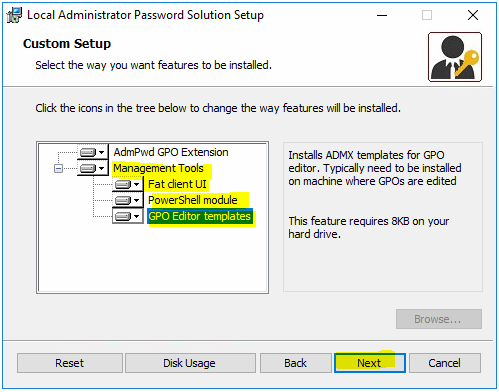

Step 5: Select the following services to install

  • AdmPwd GPO Extension
  • Management Tools
    • Fat Client UI
    • PowerShell Module
    • GPO Editor templates

LAPS Custom Setup



LAPS Custom Setup 2

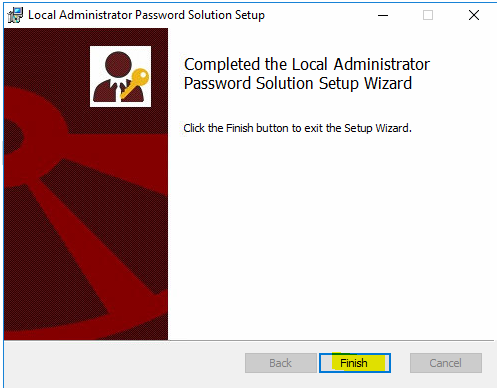

LAPS Setup Completed

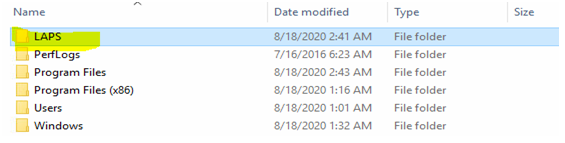

Steps 6: Creation of shared folder to store the client .msi files. This folder should be accessible from client machines.

client .msi files

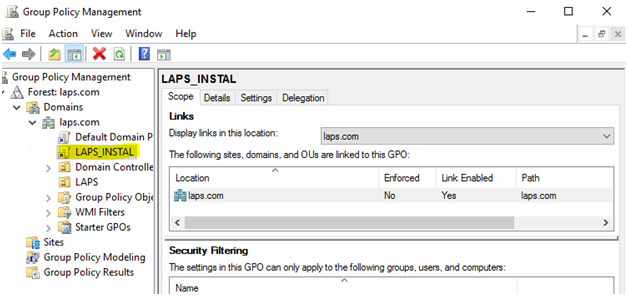

Step 7: Creation of group policy

Creation of group policy

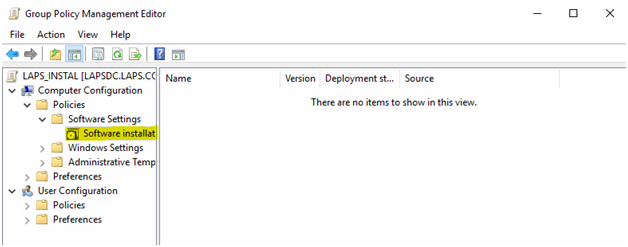

Step 8: Right click on LAPS_INSTAL -> and software installation under computer config-> polices -> software settings-> software installation

LAPS_INSTAL

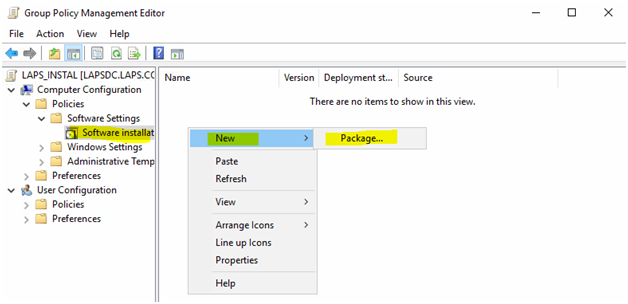

Step 9: Right Click -> New -> Package

Package

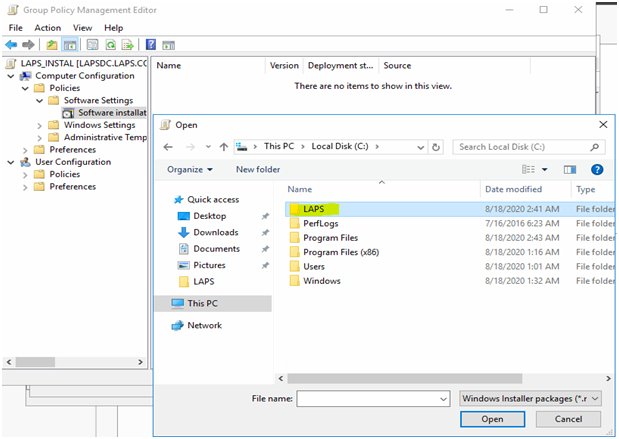

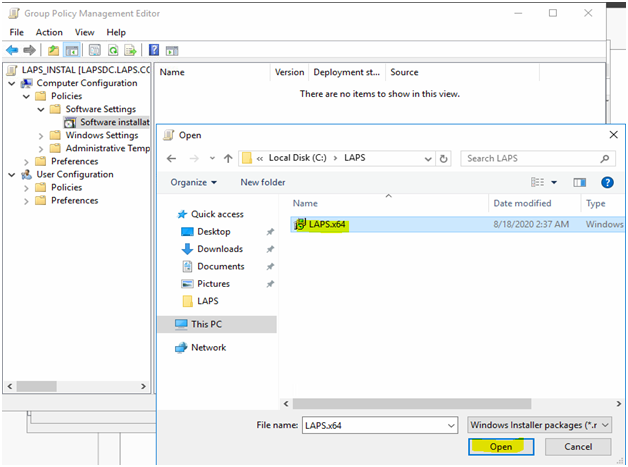

Step 10: Choose the shared folder that you created. The file LSPD.x64.msi should be available in the shared folder.

file LSPD.x64.msi

LAPS

LAPS Files

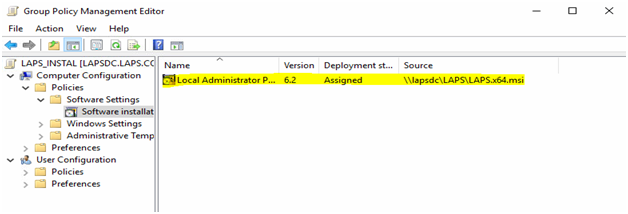

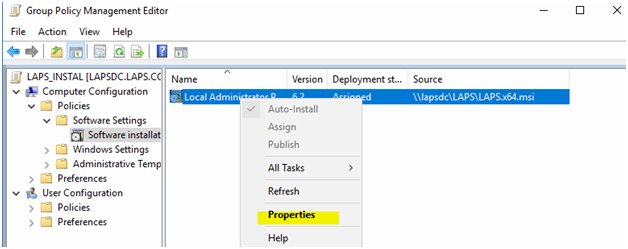

Step 11: Right Click on the local administrator package and click on properties

local administrator package

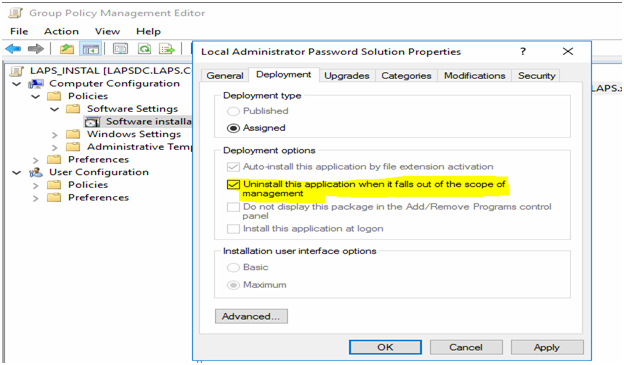

Step 12: Select the Deployment tab and select the option “Uninstall this application when it falls out of scope of management.”

scope of management

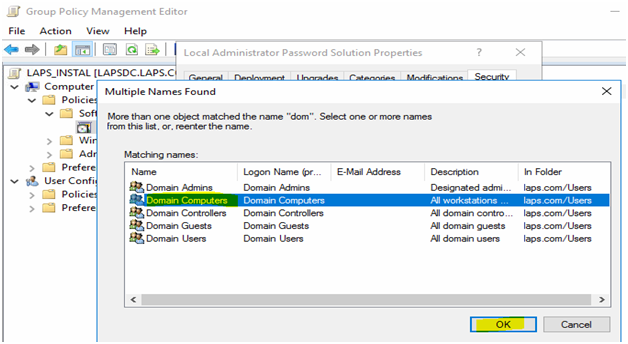

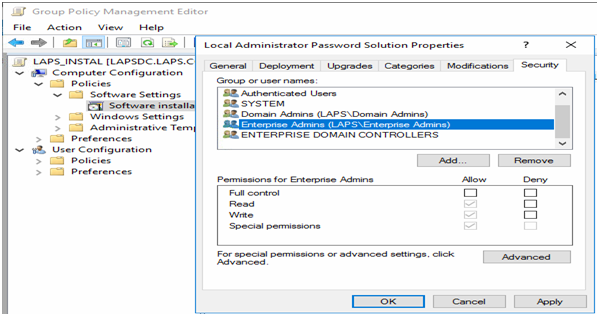

Step 13: Select the Security tab and add Domain Computers Group to access the package for client machine.

Security tab

client machine

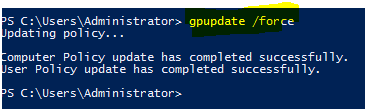

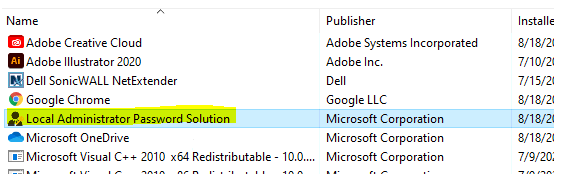

Step 14: Open command prompt in administrator mode and run gpupdate/force command. Once the gpupdate is executed, we would see the LAPS software on the client machine.

force command

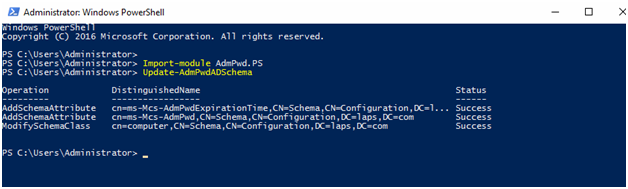

Step 15: The next step is to update the AD schema on the server. The following script needs to be executed.

          Import-module AdmPwd.ps

          Update-AdmPwsADSchema

Update-AdmPwsADSchema

          Set-AdmPwdComputerselfpermission –OrgUnit LAPS
          This command provides permission to the client machine which is in LAPS OU

OrgUnit LAPS

Set-AdmPwdReadPasswordPermission –OrgUnit LAPS –AllowedPrincipals LAPuser1

This command is to provide read permission for LAP user which is in LAPS OU

Set-AdmPwdWritePasswordPermission –OrgUnit LAPS –AllowedPrincipals LAPuser1

This command is to provide write permission to reset the password for the local admin account of domain joined computers

AllowedPrincipals LAPuser1

Find-AdmPwdExtendedRights –identity “LAPS”

This command allows you to find users having extended rights

identity “LAPS”

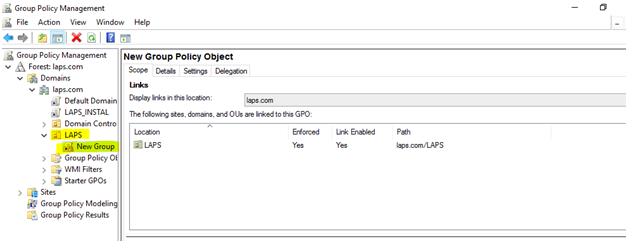

Step 16: Group Policy – Create a new GPO as shown in the below figure.

Create a new GPO

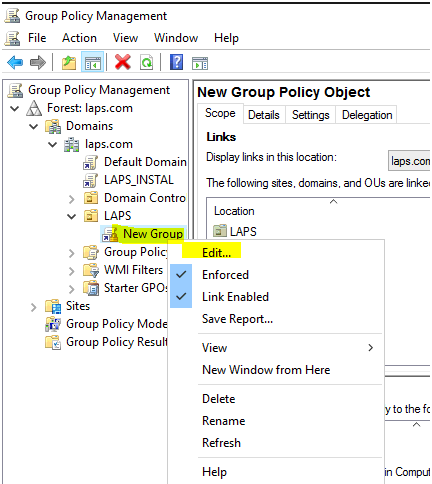

Step 17: Edit the Group Policy

Edit the Group Policy

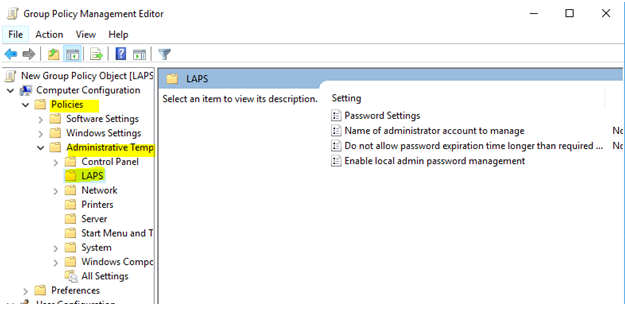

Step 18: Open the Group Policy Management Editor -> Policies -> Administrative Templates -> LAPS

Policy Management Editor

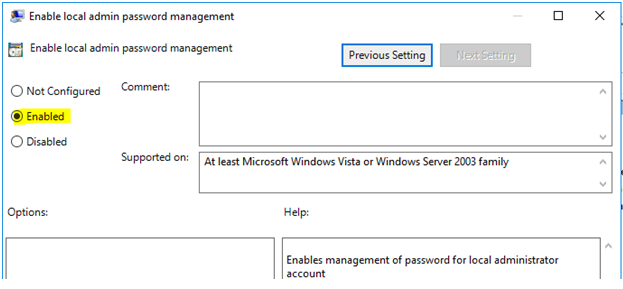

Step 19: Enable local admin password management -> Click the enabled option and Save

Enable local admin password management

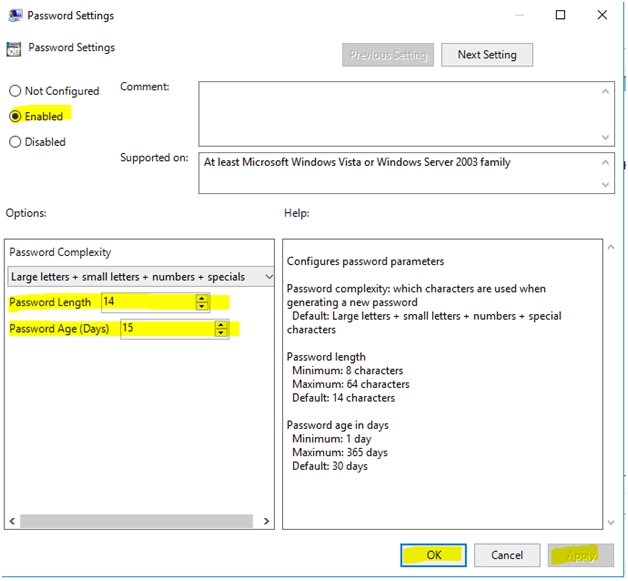

Step 20: Enable the password setting and set the password length and password age.

set the password

Step 21: Update the GPO policy by running the below command on PowerShell

Gpupdate / force

Update the GPO policy

Step 22: Change the local admin password by running the PowerShell

Get-AdmPwspassword –computername Client1

The below figure shows the specific computer’s local admin password.

local admin password

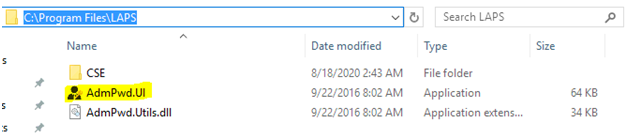

We can also use LAPS UI which is available in this path C:\Program Files\LAPS

LAPS UI

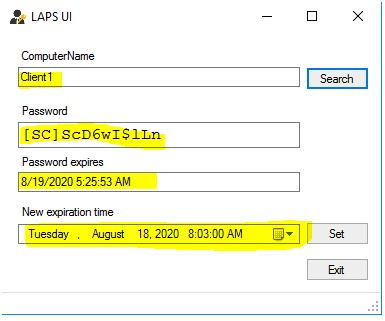

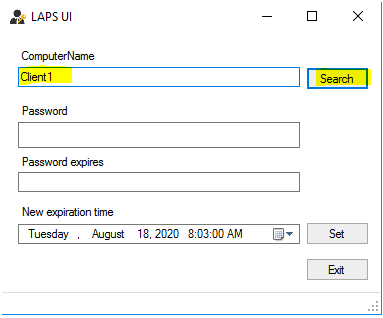

Step 23: Double click the application and the below screen will allow you to see the password

see the password

Step 24: Click on Search button and the application will show local admin password. The below screen also shows the password expiry date and the time.

local admin password
